Yanmar 4JH110 Marine Diesel Engine 110hp
$17,892.00
- Description
Description

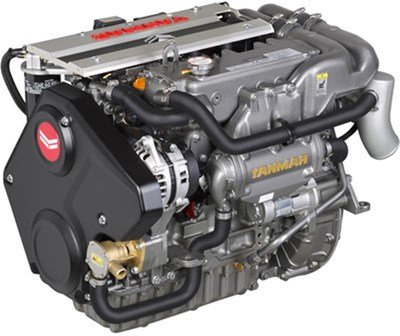

Yanmar 4JH110 Marine Diesel Engine 110HP
The Yanmar 4JH110 110HP marine diesel engine combines Bosch common-rail direct injection, turbocharging and intercooling in a compact four-cylinder configuration. Its published maximum crankshaft output is 80.9kW / 110MHP at 3,200rpm, providing a defined power specification for sailboat propulsion, cruising craft and marine repower projects. YANMAR Marine International
Request a quotation from MSS Motorsports UG for an engine package matched to your intended installation. Specify the transmission or saildrive, controls and required accessories together to establish a clear supply scope and project budget.
Turbocharged Common-Rail Performance
The 4JH110 brings electronically managed fuel injection to Yanmar’s JH-CR propulsion range:
- Bosch common-rail injection: Electronic management adjusts fuel delivery and injection timing to suit operating conditions.
- Turbocharging with intercooling: A turbocharger and charge-air cooler form part of the engine’s air-management system.
- Compact four-cylinder layout: The approximately 2.0-litre engine provides an option to assess where machinery-space dimensions influence engine selection.
- Cruising comfort: Yanmar designs the JH-CR range for smooth operation with reduced noise.
- Helm flexibility: Mechanical helm arrangements are documented alongside compatible electronic vessel-control options. YANMAR Marine International
Actual vessel performance, fuel consumption and onboard sound levels depend on the hull, displacement, drivetrain, propeller and installation.
Technical Specifications
| Specification | Manufacturer reference |
|---|---|
| Engine model | Yanmar 4JH110 |
| Engine type | Four-stroke, vertical, water-cooled diesel |
| Maximum crankshaft output | 80.9kW / 110MHP |
| Maximum-output engine speed | 3,200rpm |
| Continuous reference output | 73.6kW / 100MHP at 3,101rpm |
| Cylinder arrangement | Four cylinders in line |
| Displacement | 1.995 litres, approximately 2.0 litres |
| Bore × stroke | 84 × 90mm |
| Fuel system | Bosch common-rail direct injection |
| Engine management | Electronic |
| Aspiration | Turbocharged and intercooled |
| Starting system | 12V electric starter, 1.4kW |
| Alternator reference | 12V, 125A |
| Cooling | Freshwater engine circuit with seawater heat exchange |
| Reference dry weight | 229kg without marine gearbox |
| Reference dimensions, L × W × H | 909 × 613 × 675mm with KM4A2 gearbox |
MHP denotes metric horsepower. The continuous reference output is published in Yanmar’s recreational-use operation manual; follow the supplied engine’s approved use and operating limits.
The published length includes the KM4A2 marine gear. Dimensions vary with the gearbox and exhaust elbow, so use the installation drawing for the selected configuration. yanmar.com
Consult the official Yanmar 4JH110 specifications for manufacturer reference information.
Shaft-Drive Gearbox Options
Yanmar documents the KM4A2 mechanical cone-clutch gearbox and KMH4A hydraulic multi-disc gearbox among the available shaft-drive arrangements. Their clutch systems and installation geometry differ. yanmar.com
Confirm the exact gearbox model, reduction ratio, coupling and shaft rotation in the quotation. Retaining an existing transmission requires an installer’s assessment of compatibility, torque capacity, alignment and propeller loading.
SD110 Saildrive Configuration
Yanmar also documents the 4JH110 paired with the SD110 saildrive. This is a separate propulsion configuration requiring the correct drive, mounting arrangement, controls and propeller specification. YANMAR Marine International
For a saildrive enquiry, identify your existing drive model and provide available installation details. Have your installer review the proposed engine-and-drive package before retaining or modifying existing components.
Electronic Engine Management and Helm Controls
The 4JH110 has electronic fuel management even when operated through mechanical helm controls. The helm arrangement and common-rail injection system are separate parts of the installation.
Yanmar’s reference equipment includes a B25 panel and mechanical throttle sensor. Electronic vessel controls, additional helm stations and NMEA2000 monitoring are configuration-dependent options. Specify the required panel, control heads, wiring harnesses and harness lengths in the quotation. YANMAR Marine International
Choose the Output Your Vessel Requires
Assess the engine against loaded displacement, hull type, target cruising performance and intended use. Review engine beds, service access, ventilation, cooling-water connections, exhaust routing and electrical requirements as part of the repower plan.
For a lower-output model within the common-rail range, compare the Yanmar 4JH80 80HP marine diesel engine. Select the rating according to the vessel’s propulsion demand and installation requirements.
Pricing, Condition and Included Equipment
Request a Yanmar 4JH110 price against an itemised quotation identifying:
- Engine condition, serial number and documented hours where applicable.
- Gearbox or saildrive model, ratio and included propulsion components.
- Controls, displays, wiring harnesses, mounts and accessories.
- Available maintenance, inspection and testing records.
- Written warranty terms, packing, transport costs and estimated dispatch timing.
For used or reconditioned equipment, request details of completed work and supporting records. Confirm availability, supply scope and warranty eligibility for the specific engine offered.
Frequently Asked Questions
Is the Yanmar 4JH110 a common-rail engine?
Yes. It uses Bosch common-rail direct injection with electronic engine management.
Is 110HP the continuous reference rating?
No. Yanmar publishes 110MHP as maximum crankshaft output and a separate continuous reference rating, shown above.
Can the 4JH110 be supplied with a saildrive?
Yanmar documents an SD110 pairing. Confirm the exact engine, drive and installation package required for your vessel.
Request Your Yanmar 4JH110 Quote
Contact MSS Motorsports UG for a Yanmar 4JH110 quotation with your vessel details, current engine, gearbox or saildrive model and ratio, required controls, intended use and purchase timing. Include your billing and delivery addresses to request equipment pricing and transport costs.
