Yanmar 4JH57 Marine Diesel Engine 57hp
$12,356.00
- Description
Description

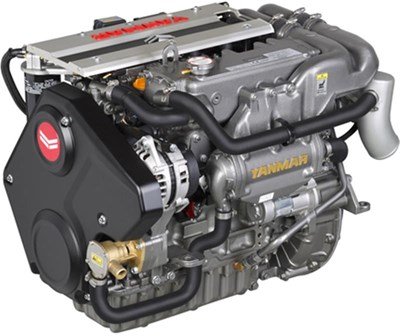

Yanmar 4JH57 Marine Diesel Engine 57HP
The Yanmar 4JH57 marine diesel engine combines 57 metric horsepower at 3,000 rpm with electronically managed Bosch common rail fuel injection. Its naturally aspirated, four-cylinder design offers a modern inboard propulsion option for sailboats and small craft. YANMAR Marine International
Looking for a Yanmar 4JH57 for sale? Request a quotation from MSS Motorsports UG for an engine or propulsion package suited to your vessel, installation and delivery requirements.
Common Rail Performance for Cruising and Repowering
Part of the Yanmar JH-CR Series, the 4JH57 brings precise electronic fuel management to auxiliary propulsion and small-craft applications. Yanmar developed this series around its TNV engine-block platform, with a custom Bosch common rail system.
Key advantages include:
- Controlled fuel delivery: Electronic management adjusts injection to suit operating conditions.
- Cruising comfort: The JH-CR range is designed for smooth operation and reduced noise.
- Naturally aspirated construction: This model operates without a turbocharger.
- Installation choices: Documented configurations include marine reduction gearboxes and an SD60 saildrive.
- Repower potential: Evaluate the engine against your existing installation to plan the required changes before ordering. YANMAR Marine International
Actual fuel consumption, cruising speed and onboard noise depend on vessel loading, propeller selection, installation and operating conditions.
Technical Specifications
| Specification | Manufacturer Reference |
|---|---|
| Engine model | Yanmar 4JH57 |
| Engine type | Four-cylinder inline, four-stroke diesel |
| Maximum crankshaft output | 41.9 kW / 57 MHP at 3,000 rpm |
| Displacement | 2.190 litres |
| Bore × stroke | 88 × 90 mm |
| Fuel system | Direct injection with Bosch common rail |
| Engine management | Electronic |
| Aspiration | Naturally aspirated |
| Cooling | Freshwater coolant circuit with seawater-cooled heat exchanger |
| Electric starter | 12V, 1.4 kW |
| Alternator reference | 12V, 125A |
| Dry engine weight | 220 kg, without gearbox |
| Reference dimensions | 870 × 589 × 627 mm, including KM35P marine gear |
MHP means metric horsepower. The dimensions above describe the referenced gearbox configuration; alternative transmissions and exhaust elbows can change the installation envelope. Check the applicable technical drawing before preparing engine beds or ordering components. yanmar.com
Review the official Yanmar 4JH57 specifications for manufacturer information.
Shaft-Drive Gearbox Options
Yanmar documentation lists KM35P parallel, KM35A2 down-angle and KM4A1 down-angle marine gear options with mechanical cone clutches. It also identifies the ZF30M, which uses a mechanical multi-disc clutch. yanmar.com
The correct transmission depends on more than horsepower. Before selecting a gearbox, establish:
- Reduction ratio and propeller requirements.
- Shaft angle, coupling dimensions and rotation.
- Gearbox load capacity and intended operating profile.
- Space for installation, alignment and servicing.
An existing gearbox should be assessed by its exact model and condition before reuse.
SD60 Saildrive Configuration
The Yanmar SD60 saildrive is a documented pairing for the 4JH57. It uses a mechanical multi-disc clutch and provides an alternative to a conventional shaft-drive arrangement. YANMAR Marine International
For a saildrive replacement, confirm the drive version, reduction ratio, hull mounting arrangement, diaphragm requirements and propeller specification. Include the existing saildrive identification and installation photographs with your enquiry so the proposed package can be defined accurately.
Helm Controls and Engine Monitoring
Yanmar’s reference engine package lists a B25 instrument panel, mechanical throttle sensor, flexible mounts and a fuel pre-filter with water separator. Its current product information also lists optional VC20/VC30 vessel controls and NMEA 2000 engine monitoring. YANMAR Marine International
A mechanical helm control can operate an electronically managed common rail engine. Specify your preferred control arrangement, number of helm stations and required displays; confirm the supplied panel, harnesses and accessories in the quotation.
Select the Right Output for Your Vessel
Yanmar’s operating manual lists a continuous reference output of 38.1 kW / 51.8 MHP at 2,907 rpm for the 4JH57 in recreational use. The advertised 57 MHP is its maximum crankshaft output. yanmar.com
Use the applicable operating guidance and vessel power requirements when selecting an engine. Commercial enquiries should include expected annual hours and load profile for assessment.
For a lower-output model in the same range, compare the Yanmar 4JH45 marine diesel engine.
Pricing, Equipment and Warranty
Request an itemised offer showing engine condition, identification, included equipment, transmission or saildrive, controls, delivery charges and lead time.
Ask for any applicable manufacturer or supplier warranty in writing, including eligibility, registration requirements, exclusions and the claims process. Confirm installation and commissioning responsibilities before purchase.
Frequently Asked Questions
Is the Yanmar 4JH57 turbocharged?
No. It is a naturally aspirated common rail marine diesel engine. YANMAR Marine International
Can it replace my existing marine engine?
It may suit a repower, subject to checking engine beds, drive alignment, cooling, exhaust, fuel supply, electrical systems and service access.
Does the price include a gearbox or saildrive?
Package contents must be confirmed in the quotation. Specify whether you need a replacement engine or a complete propulsion package.
Request Your Yanmar 4JH57 Quote
Contact MSS Motorsports UG for a Yanmar 4JH57 quotation. Include your vessel details, current engine, gearbox or drive model and ratio, controls, intended use, purchase timing, and billing and delivery addresses.
Define your engine, drivetrain and equipment requirements together to obtain a clearer purchase price and installation scope.
