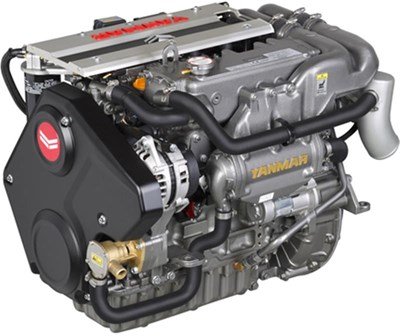

YANMAR 4JH45 Marine Diesel Engine 45hp
$11,358.00
- Description
Description
mar 4JH45 Marine Diesel Engine 45HP
The Yanmar 4JH45 45HP marine diesel engine combines a 2.19-litre, four-cylinder layout with Bosch common-rail direct injection and natural aspiration. Its published maximum crankshaft output is 33.1kW / 45MHP at 3,000rpm, making it a model to assess for sailboat propulsion, small cruising craft and marine repower projects. YANMAR Marine International
Request a quotation from MSS Motorsports UG for a shaft-drive or appropriately configured SD60 saildrive package. Specify the engine, transmission, controls and installation equipment together to establish a clear purchase scope and project budget.
Common-Rail Precision for Sailing and Cruising
The 4JH45 brings electronically managed fuel injection to a naturally aspirated marine engine:
- Bosch common-rail technology: Electronic management controls fuel delivery and injection timing as operating conditions change.
- Naturally aspirated configuration: This four-cylinder model operates without a turbocharger.
- Cruising comfort: Yanmar designs the JH-CR range for smooth operation with reduced noise.
- Flexible control choices: Mechanical helm controls are documented, with compatible electronic vessel-control systems available as configuration options. YANMAR Marine International
Actual fuel consumption, onboard noise and cruising performance depend on the vessel, loading, propeller and installation.
Technical Specifications
| Specification | Manufacturer reference |
|---|---|
| Engine model | Yanmar 4JH45 |
| Engine type | Four-stroke, vertical, water-cooled diesel |
| Maximum crankshaft output | 33.1kW / 45MHP |
| Maximum-output engine speed | 3,000rpm |
| Continuous reference output | 30.1kW / 41MHP at 2,907rpm |
| Cylinder arrangement | Four cylinders in line |
| Displacement | 2.190 litres |
| Bore × stroke | 88 × 90mm |
| Fuel system | Bosch common-rail direct injection |
| Engine management | Electronic |
| Aspiration | Naturally aspirated |
| Starting system | 12V electric starter, 1.4kW |
| Alternator reference | 12V, 125A |
| Cooling | Freshwater engine circuit with seawater heat exchange |
| Reference dry weight | 220kg without gearbox |
| Reference dimensions, L × W × H | 870 × 589 × 627mm with KM35P gearbox |
MHP denotes metric horsepower. Maximum and continuous reference outputs are different ratings; follow the supplied engine’s operating instructions and duty limits.
The published length includes the KM35P marine gear. Dimensions vary with the transmission and exhaust elbow, so use the correct installation drawing for the selected package. yanmar.com
Consult the official Yanmar 4JH45 specifications for manufacturer reference information.
Shaft Drive or SD60 Saildrive
Yanmar documents KM35P parallel-shaft and KM35A2 down-angle marine gearbox arrangements, alongside other transmission configurations. The SD60 saildrive is also a documented option for an appropriately specified 4JH45 installation. yanmar.com
Confirm the gearbox or saildrive model, reduction ratio, shaft or propeller requirements and included components. Retaining an existing drive requires an installer’s compatibility assessment.
For a shaft-drive repower, check engine beds, shaft alignment, coupling and propeller loading. For a saildrive project, review the installation bed, mounting arrangement and clearance using the selected drive’s documentation.
Engine Electronics and Helm Equipment
The 4JH45 has electronic fuel management even when configured with mechanical helm controls. The helm arrangement and fuel-injection system are separate parts of the package.
Yanmar’s reference equipment includes a B25 panel and mechanical throttle sensor. Electronic control and NMEA2000 monitoring options depend on the chosen configuration. Confirm the panel, control head, wiring harness, harness length and number of helm stations in the quotation. YANMAR Marine International
Choose the Output Your Vessel Requires
Match the engine to the boat’s loaded displacement, hull type, current propulsion system and intended cruising use. Review service access, ventilation, exhaust routing, cooling-water connections and electrical requirements before finalising a repower.
If your vessel assessment calls for more output, compare the Yanmar 4JH57 57HP marine diesel engine. Gearbox selection and propeller demand should be reviewed for the proposed installation.
Pricing, Condition and Included Equipment
Request a Yanmar 4JH45 price against an itemised supply specification covering:
- Engine condition, serial number and documented hours where applicable.
- Gearbox or saildrive model, ratio and coupling.
- Controls, instrument panel, harnesses, mounts and accessories.
- Available maintenance, inspection and testing records.
- Written warranty terms, packing, transport costs and estimated dispatch timing.
For used or reconditioned equipment, request details of completed work and supporting records. Confirm availability and warranty eligibility for the specific engine offered.
Frequently Asked Questions
Is the Yanmar 4JH45 a common-rail engine?
Yes. It uses Bosch common-rail direct injection with electronic engine management.
Is 45HP the continuous reference rating?
No. Yanmar publishes 45MHP as maximum crankshaft output and a separate continuous reference rating, shown in the specifications above.
Are the gearbox, saildrive and controls included?
The quotation determines the supply scope. Confirm each required component individually before ordering.
Request Your Yanmar 4JH45 Quote
Contact MSS Motorsports UG for a Yanmar 4JH45 quotation with your vessel details, current engine, gearbox or saildrive model and ratio, required controls, intended use and purchase timing. Include your billing and delivery addresses to request equipment pricing and transport costs.
