Description

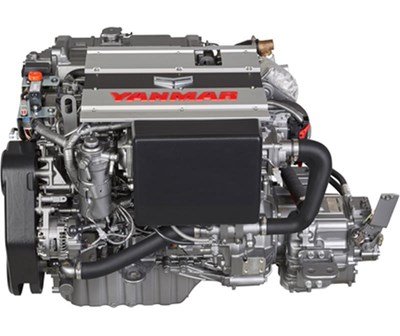

Yanmar 4LV230 Marine Inboard Diesel Engine 230HP Common Rail

The Yanmar 4LV230 230HP common rail marine diesel engine delivers a published maximum crankshaft output of 169kW / 230MHP at 3,800rpm. Its 2.755-litre, four-cylinder platform combines Denso common-rail direct injection, turbocharging and intercooling for motorboats, cruising craft and suitable yacht-tender installations. YANMAR Marine International

Request a quotation from MSS Motorsports UG for the engine, marine transmission and controls your vessel requires. For a new installation or repower, specify the complete propulsion package to establish equipment costs and installation requirements before ordering.

230HP Performance in a Four-Cylinder Package

Yanmar develops the 4LV range around low-end torque, responsive acceleration and reduced noise and vibration. The 4LV230 combines these design priorities with electronic engine management:

  • Denso common-rail injection: Electronic control manages fuel delivery and injection timing as operating conditions change.
  • Turbocharged and intercooled: A turbocharger and charge-air cooler form part of the air-management system.
  • Compact in-line layout: Four-cylinder packaging provides an option to assess where engine-room dimensions influence the repower plan.
  • Flexible helm configuration: Mechanical helm arrangements and compatible electronic vessel-control options are documented for the range. YANMAR Marine International

Actual acceleration, fuel consumption and onboard sound levels depend on the hull, displacement, drivetrain, propeller and installation.

Technical Specifications

SpecificationManufacturer reference
Engine modelYanmar 4LV230
Engine typeFour-stroke, vertical, water-cooled diesel
Maximum crankshaft output169kW / 230MHP
Maximum-output engine speed3,800rpm
Continuous reference output154kW / 209MHP at 3,683rpm
Cylinder arrangementFour cylinders in line
Displacement2.755 litres
Bore × stroke92 × 103.6mm
Fuel systemDenso common-rail direct injection
Engine managementElectronic
AspirationTurbocharged and intercooled
Starting system12V electric starter, 2kW
Alternator referenceDenso 12V, 130A
CoolingFreshwater engine circuit with seawater heat exchange
Reference dry weight334kg without marine gearbox
Datasheet dimensions, L × W × H1,151 × 755 × 772mm in the KMH50A configuration

MHP denotes metric horsepower. The continuous reference output is published in Yanmar’s recreational-use operation manual. Follow the supplied engine’s approved use and operating limits.

The datasheet length includes the KMH50A gearbox. Dimensions vary with the transmission and exhaust elbow; use the installation drawing for the selected package. yanmar.com

Consult the official Yanmar 4LV230 specifications for manufacturer reference information.

Shaft-Drive Gearbox Options

Yanmar documents KMH50A down-angle and KMH50V V-drive transmission arrangements. Both use hydraulically operated multi-disc clutches, with different geometry and reduction-ratio options. yanmar.com

Confirm the gearbox model, ratio, coupling and shaft rotation in the quotation. If retaining an existing transmission, have your installer assess compatibility, torque capacity, shaft alignment and propeller loading.

The 4LV230Z identifies the sterndrive configuration associated with Yanmar’s ZT370 arrangement. State whether your project requires a shaft-drive package, a replacement engine or a complete sterndrive installation. YANMAR Marine International

Electronic Fuel Management and Controls

The 4LV230 uses electronic fuel management even when operated through mechanical helm controls. The helm arrangement and the common-rail injection system are separate parts of the installation.

Identify the required control head, throttle sensor, instrument panel, harness lengths and number of stations. Yanmar lists electronic vessel-control, joystick and NMEA2000 monitoring options; compatibility and inclusion depend on the complete package. YANMAR Marine International

Compare the 4LV230 and 4LV250

The 4LV230 and the Yanmar 4LV250 250HP common rail marine engine share the published 2.755-litre displacement and 3,800rpm rated speed. Their nominal maximum outputs differ by 20MHP. yanmar.com

Select the rating according to your vessel’s propulsion demand, target cruising performance and drivetrain capacity. For a repower, review engine beds, maintenance access, ventilation, exhaust routing, cooling-water supply and electrical connections.

Pricing, Condition and Supply Scope

Request a Yanmar 4LV230 price against an itemised specification covering:

  • Engine condition, serial number and documented hours where applicable.
  • Gearbox or drive model, ratio and included propulsion components.
  • Controls, displays, wiring harnesses, mounts and accessories.
  • Available maintenance, inspection and testing records.
  • Written warranty terms, packing, transport costs and estimated dispatch timing.

For used or reconditioned equipment, request the scope of completed work and supporting records. Confirm current availability, warranty eligibility and all included components before comparing offers.

Frequently Asked Questions

Is 230HP the continuous reference rating?

No. Yanmar publishes 230MHP as maximum crankshaft output, with a separate continuous reference rating shown above.

Is the 4LV230 a common-rail engine?

Yes. It uses Denso common-rail direct injection with electronic engine management.

Are the gearbox and controls included?

Inclusion depends on the quotation. Confirm the transmission or drive, controls, displays, harnesses and installation accessories individually.

Request Your Yanmar 4LV230 Quote

Contact MSS Motorsports UG for a Yanmar 4LV230 quotation with your vessel details, current engine, gearbox or drive model and ratio, required helm stations, intended use and purchase timing. Include your billing and delivery addresses to request equipment pricing and transport costs.
