Yanmar 4LV195 Marine Inboard Diesel Engine 195hp Common Rail
$34,079.00
- Description
Description

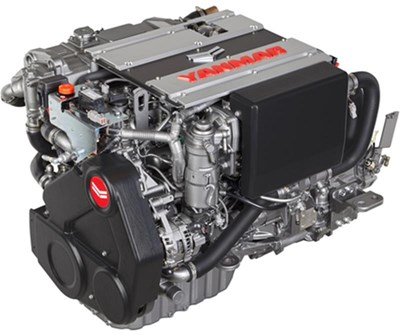

Yanmar 4LV195 Marine Inboard Diesel Engine 195HP Common Rail
The Yanmar 4LV195 195HP common rail marine diesel engine brings electronically managed diesel propulsion to motorboats, cruising yachts and yacht tenders. Its 2.755-litre, four-cylinder platform combines Denso common-rail direct injection with turbocharging and intercooling, delivering a published maximum crankshaft output of 143kW / 195MHP at 3,500rpm. YANMAR Marine International
Planning a new installation or a marine repower? Request a quotation from MSS Motorsports UG for the engine, transmission and control configuration your vessel requires. Specify the complete propulsion package to compare equipment costs and installation requirements before ordering.
Common-Rail Performance for Cruising and Acceleration
The 4LV195 combines modern fuel management with a compact in-line engine layout:
- Electronically controlled injection: The ECU uses operating-condition feedback to manage fuel injection timing and quantity.
- Turbocharged and intercooled: A turbocharger and charge-air cooler form part of the engine’s air-management system.
- Low-speed torque: Yanmar designs the 4LV range around strong low-end torque and responsive acceleration.
- Onboard comfort: The range is engineered to limit noise and vibration, making these relevant considerations for cruising boats and tenders. 40 to 640 MHP
Actual fuel consumption, acceleration and sound levels depend on the hull, displacement, drivetrain, installation and operating conditions.
Technical Specifications
| Specification | Manufacturer reference |
|---|---|
| Engine model | Yanmar 4LV195 |
| Engine type | Four-stroke, vertical, water-cooled diesel |
| Maximum crankshaft output | 143kW / 195MHP |
| Maximum-output engine speed | 3,500rpm |
| Continuous reference output | 130kW / 177MHP at 3,392rpm |
| Cylinder arrangement | Four cylinders in line |
| Displacement | 2.755 litres |
| Bore × stroke | 92 × 103.6mm |
| Fuel system | Denso common-rail direct injection |
| Engine management | Electronic |
| Aspiration | Turbocharged and intercooled |
| Starting system | 12V electric starter, 2kW |
| Alternator | Denso 12V, 130A |
| Cooling | Freshwater engine circuit with seawater heat exchange |
| Reference dry weight | 334kg without marine gearbox |
| Reference dimensions, L × W × H | 1,151 × 755 × 772mm in the KMH50A configuration |
MHP denotes metric horsepower. Continuous reference output is published in Yanmar’s recreational-use operation manual. Maximum output is not a recommendation for continuous full-load operation.
The published length includes the KMH50A gearbox. Dimensions vary with the gearbox and exhaust elbow; use the correct installation drawing for the selected package. yanmar.com
See the official Yanmar 4LV195 specifications for manufacturer reference information.
Shaft-Drive Gearbox and Installation Options
For an inboard shaft-drive installation, Yanmar documents KMH50A down-angle and KMH50V V-drive marine transmission arrangements. Both use hydraulically operated multi-disc clutches, but their geometry and reduction-ratio options differ. yanmar.com
Confirm the gearbox model, ratio, shaft rotation and coupling in the quotation. If retaining an existing transmission, have your installer assess compatibility, torque capacity, alignment and propeller loading.
The 4LV195Z identifies the sterndrive configuration associated with Yanmar’s ZT370 arrangement. Specify the drive system required when requesting an engine package. YANMAR Marine International
Engine Electronics and Helm Controls
The 4LV195 has electronic engine management even when operated through a mechanical helm-control arrangement. A mechanical throttle lever does not make the fuel-injection system mechanical.
Confirm the throttle sensor, control panel, wiring harness and number of helm stations required. Yanmar lists electronic vessel-control and NMEA2000 monitoring options; compatibility and inclusion depend on the selected configuration. yanmar.com
Plan Your Yanmar Marine Repower
Provide your vessel make, model, loaded displacement and desired cruising performance when comparing replacement engines. Assess engine-bed dimensions, service access, cooling-water supply, exhaust routing, ventilation and electrical connections before finalising the installation.
For a higher-output option within the same family, compare the Yanmar 4LV230 230HP common rail marine engine. Output, rated speed and drivetrain requirements should be assessed for the proposed vessel.
Pricing, Equipment and Buyer Documentation
Request a Yanmar 4LV195 price against a clearly defined configuration. An itemised quotation should identify:
- Engine condition, serial number and documented operating hours where applicable.
- Gearbox or drive system, reduction ratio and coupling.
- Controls, instrument panel, harnesses and included accessories.
- Available inspection, service and testing records.
- Written warranty coverage, provider, exclusions and claim procedure.
- Availability, packing, transport costs and estimated dispatch timing.
For used or reconditioned equipment, request the scope of completed work and supporting records. Confirm every included component before comparing the offer with an engine-only price.
Frequently Asked Questions
Does 195HP mean continuous operating power?
No. It is the published maximum crankshaft rating. Follow the supplied engine’s operating instructions and applicable duty limits.
Are the gearbox and controls included?
Inclusion depends on the quotation. Confirm the transmission, controls, displays, harnesses and installation accessories individually.
Can the 4LV195 be used commercially?
Commercial suitability depends on the exact engine version, approved rating, operating profile and market requirements. Provide expected annual hours and load conditions for assessment.
Request Your Yanmar 4LV195 Quote
Contact MSS Motorsports UG for a Yanmar 4LV195 quotation with your vessel details, current engine, gearbox or drive model and ratio, required helm stations, intended use and purchase timing. Include your billing and delivery addresses to request equipment pricing and transport costs.
