Yanmar 3YM30 Marine Inboard Diesel Engine 29hp

0 out of 5

$8,671.00

Category:

Description

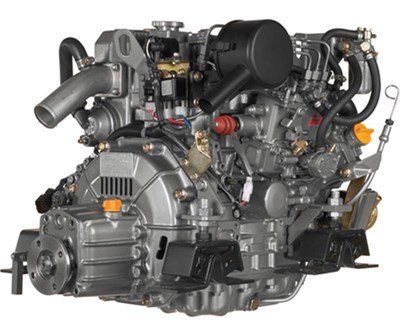

Yanmar 3YM30 Marine Inboard Diesel Engine 29HP

The Yanmar 3YM30 marine inboard diesel engine delivers a maximum 21.3 kW / 29 MHP at 3,600 rpm from a 1.115-litre, three-cylinder platform. Naturally aspirated and mechanically operated, it combines indirect fuel injection with freshwater heat-exchanger cooling for sailboat and pleasure-craft propulsion. yanmar.com

Looking for a Yanmar 3YM30 for sale? Request pricing from MSS Motorsports UG for an engine replacement or propulsion package. Include your engine identification, existing drivetrain and required accessories to obtain a quotation matched to your vessel.

Mechanical Diesel Propulsion for Sailing Boats

The original Yanmar 3YM30 offers a three-cylinder configuration for auxiliary propulsion and marine repower projects. Its mechanical fuel system, electric starting and documented transmission options provide clear reference points when planning an installation.

Key features include:

  • Mechanical indirect injection: Fuel is delivered to a swirl pre-combustion chamber.
  • Naturally aspirated operation: The engine develops its rated output without turbocharging.
  • Freshwater heat-exchanger cooling: An engine coolant circuit transfers heat to the seawater circuit through a heat exchanger.
  • Drivetrain options: Original factory literature documents a KM2P-1 marine gearbox and an SD20 saildrive configuration. yanmar.com

Match engine output to vessel displacement, required motoring performance and propeller demand. Actual cruising speed and fuel consumption depend on the complete installation.

Technical Specifications

SpecificationManufacturer Reference
Engine modelYanmar 3YM30, original 1.115-litre version
Engine configurationThree-cylinder inline, four-stroke diesel
Maximum crankshaft output21.3 kW / 29.0 MHP at 3,600 rpm
Displacement1.115 litres
Bore × stroke76 × 82 mm
Fuel systemMechanical indirect injection
AspirationNaturally aspirated
CoolingFreshwater cooling with heat exchanger
Starter reference12V, 1.4 kW
Dry engine weight reference123 kg, without gearbox
Factory datasheet dimensionsApproximately 715.5 × 462 × 545 mm, with KM2P-1 marine gear
Alternator12V; amperage to be confirmed for the supplied version

MHP means metric horsepower. Weight and dimension references describe the documented engine configuration. Confirm the applicable drawing, alternator specification and included equipment against the engine being quoted. yanmar.com

Consult the Yanmar operating manual covering the original 3YM30 for manufacturer information.

Confirm the Correct 3YM30 Version

This description covers the original 1.115-litre 3YM30 rated at 3,600 rpm. The later Yanmar 3YM30AE marine diesel engine uses 1.266 litres and has a rated speed of 3,200 rpm. yanmar.com

Provide a photograph of your engine identification plate when requesting a replacement. Model suffixes, installation dimensions, electrical equipment and drivetrain connections matter when defining the correct supply.

KM2P-1 Marine Gearbox for Shaft Drive

Yanmar’s original 3YM30 literature identifies the KM2P-1 marine gearbox, using a mechanical cone clutch. yanmar.no

Select the reduction ratio around the vessel’s propeller, shaft layout and operating requirements. If retaining an existing gearbox, provide its exact model, ratio, identification plate and coupling details for compatibility assessment.

Confirm engine-bed positions, shaft alignment and access for servicing before finalising the installation.

Saildrive Configuration and Replacement Enquiries

The original 3YM30 operating manual and factory datasheet document the SD20 saildrive. Later SD25 documentation also lists a 3YM30 pairing at 3,600 rpm. yanmar.com

For an existing saildrive installation, identify the actual drive model, reduction ratio, mounting arrangement, leg configuration and propeller. Confirm the appropriate engine-to-drive connection and required components for the proposed package.

Include controls, diaphragm, seals, anodes and mounting hardware in the quotation scope where required.

Controls, Instrumentation and Equipment Scope

Specify the required instrument panel, wiring harness, throttle and shift controls, engine mounts and exhaust mixing elbow when requesting pricing.

Factory equipment changed across production versions, so the offer should identify the alternator rating, panel type and included accessories. An engine-only replacement and a complete propulsion package require different equipment scopes.

For an existing vessel, photographs of the panel, controls, engine connections and installation space help define the replacement requirements.

Power Rating and Operating Requirements

Yanmar’s operating manual lists 21.3 kW / 29 MHP at 3,600 rpm as maximum crankshaft output for the original 3YM30. It separately gives a continuous reference output of 19.4 kW / 26.4 MHP at 3,489 rpm for pleasure use. yanmar.com

Use the applicable manual and rating conditions when selecting the engine and propeller. Include your intended use and expected operating hours with the enquiry.

Pricing, Condition and Warranty

Request an itemised quotation showing engine identification, condition, available documentation, gearbox or saildrive, included equipment, availability, delivery charges and estimated lead time.

For used or reconditioned equipment, request details of the work completed and any available inspection or test records. Obtain written warranty terms, including eligibility, exclusions and the claims process, before purchase.

Frequently Asked Questions

Is the Yanmar 3YM30 freshwater cooled?
Yes. It uses an engine coolant circuit with a heat exchanger and a separate seawater circuit.

Does the 123 kg reference weight include a gearbox?
No. The factory datasheet identifies it as dry engine weight without marine gear. yanmar.no

Can I reuse my existing gearbox or saildrive?
Compatibility depends on the exact drive model, ratio, connection arrangement and condition. Provide identification details before selecting the replacement engine.

Request Your Yanmar 3YM30 Quote

Contact MSS Motorsports UG for a Yanmar 3YM30 quotation. Include your vessel model, engine identification, gearbox or drive model and ratio, preferred controls, intended use, purchase timing, and billing and delivery addresses.
