Yanmar 3YM20 Marine Inboard Diesel Engine 21hp
$7,538.00
- Description
Description

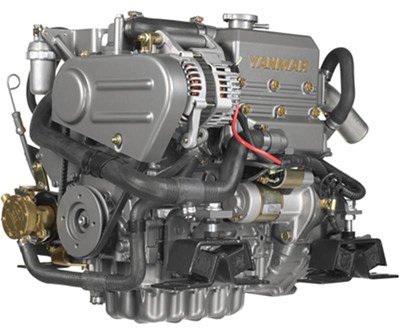

Yanmar 3YM20 Marine Inboard Diesel Engine 21HP
The Yanmar 3YM20 marine inboard diesel engine combines a 0.854-litre, three-cylinder design with mechanical indirect injection and freshwater heat-exchanger cooling. Positioned in Yanmar’s 21 MHP class, this naturally aspirated engine provides auxiliary propulsion for smaller sailboats and pleasure craft. YANMAR Marine International
Looking for a Yanmar 3YM20 for sale? Request pricing from MSS Motorsports UG for a replacement engine, shaft-drive package or SD25 saildrive configuration. Specify your vessel, drivetrain and required equipment to obtain a quotation matched to your project.
Three-Cylinder Diesel Power for Sailing Boats
Part of the Yanmar YM Series, the 3YM20 combines mechanical engine management with a compact installation format. Yanmar designs the range around accessible maintenance, smooth operation and low noise for recreational boating.
Key features include:
- Mechanical indirect injection: An in-line pump supplies the engine’s pre-combustion chamber system.
- Naturally aspirated operation: The engine develops its rated output without turbocharging.
- Freshwater cooling: An engine coolant circuit exchanges heat with the seawater circuit through a heat exchanger.
- Drivetrain options: Manufacturer documentation covers the KM2P-1 marine gearbox and SD25 saildrive. www.yanmar.com
For a repower, match the engine to vessel displacement, required motoring performance, installation space and propeller demand.
Technical Specifications
| Specification | Manufacturer Reference |
|---|---|
| Engine model | Yanmar 3YM20 |
| Marketed output class | 21 MHP |
| Maximum crankshaft output, ISO 8665 | 15.3 kW / 20.8 MHP at 3,600 rpm |
| Engine configuration | Three-cylinder inline, four-stroke diesel |
| Displacement | 0.854 litres |
| Bore × stroke | 70 × 74 mm |
| Fuel system | Mechanical indirect injection, in-line pump |
| Aspiration | Naturally aspirated |
| Cooling | Freshwater cooling with heat exchanger |
| Electric starter reference | 12V, 1.4 kW |
| Alternator reference | 12V, 125A |
| Published dry engine weight | 110 kg, without gearbox |
| Product-page reference dimensions | 694 × 463 × 600 mm |
The dimension reference includes the KM2P-1 gearbox in its length and a U-type exhaust elbow in its height. Check the drawing for the quoted engine version, gearbox and exhaust arrangement before preparing the installation. YANMAR Marine International
Review the official Yanmar 3YM20 specifications for manufacturer information.
Understanding the 21HP Rating
Yanmar markets the 3YM20 as 21 MHP, while its operating manual specifies 15.3 kW / 20.8 metric horsepower at 3,600 rpm under ISO 8665. MHP means metric horsepower.
The pleasure-use manual separately lists a continuous reference output of 13.9 kW / 18.9 MHP at 3,489 rpm. Use the applicable kW output and operating guidance when selecting an engine and matching propeller load. YANMAR Marine International
Actual cruising speed and fuel consumption depend on hull design, vessel loading, propeller selection and installation.
KM2P-1 Marine Gearbox for Shaft Drive
The Yanmar KM2P-1 is the documented shaft-drive gearbox for the 3YM20. It uses a mechanical cone clutch, with different reduction-ratio versions identified in factory literature. yanmar.com
Select the ratio around the vessel’s shaft arrangement and propeller requirements. If retaining an existing gearbox, provide its model, ratio, identification plate and coupling details for compatibility assessment.
Confirm engine-bed positions, alignment and service access before finalising the package.
Yanmar 3YM20 with SD25 Saildrive
The Yanmar SD25 saildrive is a documented pairing for the 3YM20. It uses a dog clutch and has a published 2.64:1 reduction ratio in forward and reverse. YANMAR Marine International
For a complete saildrive quotation, identify the drive version, leg configuration, mounting arrangement and required propeller. Confirm the scope for controls, diaphragm, seals, anodes and mounting hardware.
Include identification photographs and installation details when requesting an engine or drive replacement for an existing vessel.
B20 Instrument Panel and Equipment Scope
Yanmar’s current reference engine package lists a B20 instrument panel, flexible mounts, freshwater expansion tank, electric stop solenoid, belt safety cover and L-type exhaust mixing elbow. It also identifies a 12V, 125A alternator. YANMAR Marine International
Specify your control head, harness length and any second-station requirements. Confirm the supplied equipment in writing when comparing an engine-only offer with a complete propulsion package.
For a higher-output option in the same family, compare the Yanmar 3YM30AE marine diesel engine.
Pricing, Availability and Warranty
Request an itemised quotation confirming engine identification, condition, gearbox or saildrive, included accessories, availability, estimated lead time and delivery charges.
For used or reconditioned equipment, request the available service history, details of completed work and any inspection or test records. Obtain written terms for any applicable manufacturer or supplier warranty, including eligibility, exclusions and the claims process.
Agree installation and commissioning responsibilities before purchase.
Frequently Asked Questions
What fuel system does the Yanmar 3YM20 use?
It uses mechanical indirect injection with an in-line fuel pump.
Does the 110 kg engine weight include a gearbox?
No. Yanmar’s international product reference gives that figure without marine gear. Assess the weight of the complete quoted package. yanmar.com
Can the 3YM20 replace an older marine engine?
It may suit a repower after checking mounts, drivetrain connections, cooling, exhaust, fuel supply, electrical equipment and service access.
Request Your Yanmar 3YM20 Quote
Contact MSS Motorsports UG for a Yanmar 3YM20 quotation. Include your vessel model, current engine, gearbox or drive model and ratio, preferred controls, intended use, purchase timing, and billing and delivery addresses.
