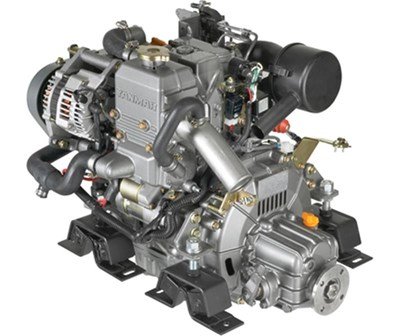

Yanmar 2YM15 Marine Inboard Diesel Engine 14HP
The Yanmar 2YM15 marine inboard diesel engine is a two-cylinder, naturally aspirated diesel in Yanmar’s 14 MHP class, developed for smaller sailboats and pleasure craft. Its 0.570-litre displacement, mechanical indirect injection and freshwater heat-exchanger cooling provide a compact auxiliary propulsion option for new installations and repower projects. YANMAR Marine International
Looking for a Yanmar 2YM15 for sale? Request pricing from MSS Motorsports UG for a replacement engine, shaft-drive package or SD25 saildrive configuration. Define your vessel, drivetrain and required equipment to receive a quotation suited to your project.
Compact Mechanical Diesel Power for Smaller Boats
Part of the Yanmar YM Series, the 2YM15 combines mechanical engine management with a compact two-cylinder layout. Yanmar emphasizes accessible maintenance, smooth operation and low noise across this range.
Key features include:
- Mechanical fuel injection: An in-line pump supplies the indirect-injection combustion system.
- Naturally aspirated operation: The engine develops its rated output without turbocharging.
- Freshwater heat-exchanger cooling: A coolant circuit transfers engine heat to the seawater circuit through a heat exchanger.
- Flexible propulsion arrangements: Documented configurations include a KM2P-1 marine gearbox and an SD25 saildrive. YANMAR Marine International
For a repower, assess the engine alongside the vessel’s displacement, required cruising speed, available installation space and propeller demand.
Technical Specifications
| Specification | Manufacturer Reference |
|---|---|
| Engine model | Yanmar 2YM15 |
| Marketed output class | 14 MHP |
| Maximum crankshaft output, ISO 8665 | 10.0 kW / 13.6 MHP at 3,600 rpm |
| Engine configuration | Two-cylinder inline, four-stroke diesel |
| Displacement | 0.570 litres |
| Bore × stroke | 70 × 74 mm |
| Fuel injection | Mechanical indirect injection, in-line pump |
| Aspiration | Naturally aspirated |
| Cooling | Freshwater cooling with heat exchanger |
| Starter | 12V, 1.4 kW |
| Alternator reference | 12V, 125A |
| Dry engine weight | 103 kg, without gearbox |
| Published reference dimensions | 613 × 463 × 600 mm |
The dimension reference includes the KM2P-1 gearbox in its length and a U-type exhaust elbow in its height. Confirm the drawing for the proposed engine, gearbox and exhaust arrangement before preparing the installation. yanmar.com
Review the official Yanmar 2YM15 specifications for manufacturer information.
Understanding the 14HP Rating
Yanmar markets this model as 14 MHP, while its operating manual specifies 10.0 kW / 13.6 metric horsepower at 3,600 rpm under ISO 8665. MHP means metric horsepower.
The pleasure-use manual separately lists a continuous reference output of 9.1 kW / 12.4 MHP at 3,489 rpm. Use the applicable kW output and operating guidance when comparing engines and matching propeller load. YANMAR Marine International
Actual vessel speed and fuel consumption depend on hull design, displacement, propeller selection and installation.
KM2P-1 Marine Gearbox for Shaft Drive
The Yanmar KM2P-1 is the documented shaft-drive transmission for the 2YM15. It uses a mechanical cone clutch, with different reduction-ratio versions identified in Yanmar’s operating manual. yanmar.com
Specify your required ratio and shaft arrangement when requesting a package. If retaining an existing gearbox, provide its exact model, ratio, identification plate and coupling details for compatibility assessment.
For a replacement installation, also establish mount positions, shaft alignment and space for routine servicing.
Yanmar 2YM15 with SD25 Saildrive
The Yanmar SD25 saildrive is a documented pairing for the 2YM15. It uses a dog clutch and has a published 2.64:1 reduction ratio in forward and reverse. YANMAR Marine International
A complete saildrive enquiry should identify the drive version, mounting arrangement, leg length and required propeller. Confirm the scope for controls, diaphragm, seals, anodes and mounting hardware in the quotation.
For an existing saildrive replacement, include identification photographs and installation details so the correct configuration can be assessed.
B20 Instrument Panel and Package Equipment
Yanmar’s current reference engine package lists a B20 instrument panel, flexible mounts, freshwater expansion tank, electric stop solenoid and belt safety cover. It also identifies a 12V, 125A alternator. YANMAR Marine International
Specify the control head, harness length and any second-station requirements. Engine condition and quoted package scope determine what is supplied; confirm accessories individually before ordering.
For a higher-output option in the same range, compare the Yanmar 3YM20 marine inboard diesel engine.
Pricing, Availability and Warranty
Request an itemised quotation confirming engine condition, identification, gearbox or saildrive, included equipment, availability, estimated lead time and delivery charges.
Obtain written details of any applicable manufacturer or supplier warranty, including eligibility, registration requirements, exclusions and the claims process. Agree installation and commissioning responsibilities before purchase.
Frequently Asked Questions
What fuel system does the Yanmar 2YM15 use?
It uses mechanical indirect injection with an in-line fuel pump.
Does the 103 kg engine weight include a gearbox?
No. It is the published dry engine weight without marine gear. Assess the weight of the complete proposed package. yanmar.com
Can the 2YM15 replace an older marine diesel engine?
It may suit a repower after checking engine beds, drivetrain connections, cooling, exhaust, fuel supply, electrics and service access.
Request Your Yanmar 2YM15 Quote
Contact MSS Motorsports UG for a Yanmar 2YM15 quotation. Include your vessel model, current engine, gearbox or drive model and ratio, preferred controls, intended use, purchase timing, and billing and delivery addresses.
