Description

KW Rating: 21.0 KW at 60HZ – 17.5 KW at 50HZ. Kubota diesel engine, single bearing direct coupled generator with 1% solid state voltage regulation and low 1800 RPM running speed. In addition, it has a Safety Stop System due to High Coolant Temperature or Low Lubricating Oil Pressure. 5-year limited warranty.

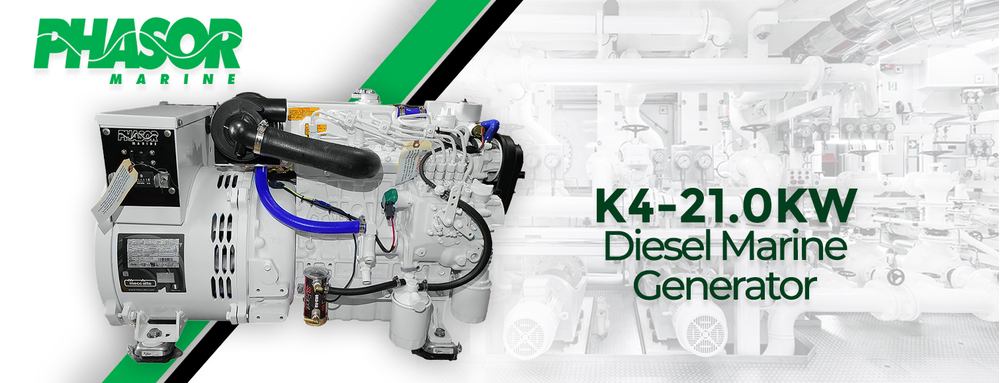

Phasor K4-21.0kW Diesel Marine Generator – 21.0kW (60 Hz) – 1800 RPM – Standard Series

Standard Features

• Kubota Diesel Engine
• Single Bearing Direct Coupled Generator
• ± 1% Solid-State Voltage Regulation
• Low 1,800 RPM Operating Speed
• Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
• Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
• Fresh Water Double Pass Heat Exchanger
• Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
• Zinc Anode in Heat Exchanger
• Stainless Steel Exhaust Elbow Cast
• Gear Driven Raw Water Pump
• Four Point Isolation Mounts S/S
• Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
• Air Intake Cleaner / Silencer
• Closed Crankcase Breather System
• Spin-On Lube / Fuel Filters
• Secondary 5 Micron Fuel Filter
• Self Bleed Fuel System
• USCG Approved Fuel Lines
• Electric Fuel Transfer Pump
• Forged Brass Oil Drain Valve with Safety Lock
• Awl-Craft 2000 Urethane Finish
• 5 Year Limited Warranty
• Circuit Breaker – Single Phase
• Belt Guard

Specifications

Recommended Oil:

• 5w-40 Full Synthetic Oil

Optional Equipment

• Start – Stop – 20ft Harness
• Custom Remote Engine / Generator Instrument Panels
• DC Gauge Panel – 20ft Harness
• Stainless Steel Drip Pan
• Three Phase Generator Output
• Custom Front PTO Pulleys
• 24 Volt Starting System
• 50 Cycle Output
• Dedicated Motor Starting Generator Windings
• Sound Insulation Blanket
• Sound Attenuated Enclosure
• Powder Coated Aluminum
• Remote Oil Filter Kits
• BALMAR High Output Alternator
• Custom Chrome Packages
• Spare Parts Kit

Included With The Spare Parts Kit:
