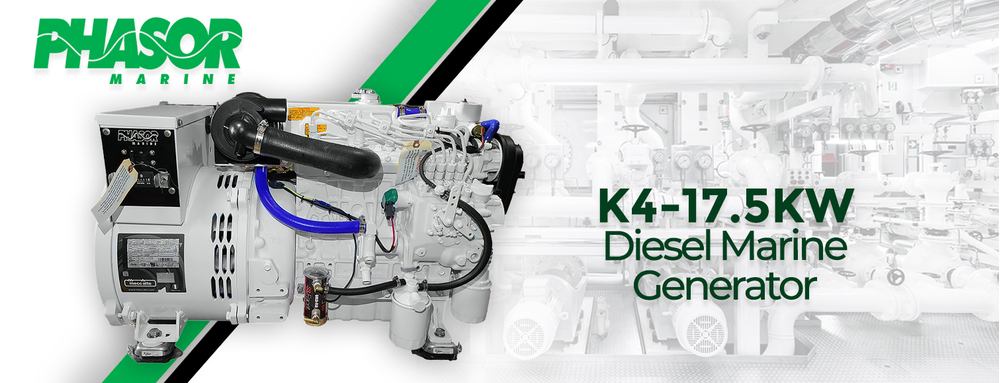

Phasor K4-17.5kW Diesel Marine Generator – 17.5kW (60 Hz) – 1800 RPM – Standard Series
$14,704.00
- Description
- Reviews (0)
Description
KW Rating: 17.5 KW at 60 HZ – 14.5 KW at 50 HZ. Kubota Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty.
Phasor – K4-17.5kW Kubota Diesel Engine – Marine Generator – 17.5 kW (60 Hz)
Standard Features
- Kubota Diesel Engine
- Single Bearing Direct Coupled Generator
- ± 1% Solid-State Voltage Regulation
- Low 1,800 RPM Operating Speed
- Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
- Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
- Fresh Water Double Pass Heat Exchanger
- Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
- Zinc Anode in Heat Exchanger
- Stainless Steel Exhaust Elbow Cast
- Gear Driven Raw Water Pump
- Four Point Isolation Mounts S/S
- Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
- Air Intake Cleaner / Silencer
- Spin-On Lube / Fuel Filters
- Secondary 5 Micron Fuel Filter
- Self Bleed Fuel System
- USCG Approved Fuel Lines
- Electric Fuel Transfer Pump
- Forged Brass Oil Drain Valve with Safety Lock
- Awl-Craft 2000 Urethane Finish
- 5 Year Limited Warranty
- Circuit Breaker – Single Phase
- Belt Guard
Specifications
| Kubota Model | V2003-M-E4BG |
| Number of Cylinders | 4 |
| KW Rating at 60 Hz | 17.5 Kw |
| KW Rating at 50 Hz | 14.5 Kw |
| Cubic Inch Displacement | 122.0 |
| Electric End | Linz |
| Bore x Stroke | 3.27″ x 3.64″ |
| Dimensions (LxWxH) without enclosure | 39.5″ x 21.0″ x 26.0″ |
| Dimensions (LxWxH) with enclosure | 43″ x 24″ x 28.0″ |
| Weight (lbs.) | 765 |
| Output (volts) | 120/240 |
| Output (amps) | 145.8/72.9 |
| Output (watts) | 17,500 (17.5KW) at 60HZ / 14,500 (14.5KW) at 50HZ |
| Exhaust Dia. | 2.0″ |
| Raw Water Dia. | 1.0″ |
| Fuel Line Dia. | 5/16″ |
| Return Line Dia. | 3/16″ |
Recommended Oil:
- 5w-40 Full Synthetic Oil
Optional Equipment
- Start – Stop – 20ft Harness
- Custom Remote Engine / Generator Instrument Panels
- DC Gauge Panel – 20ft Harness
- Stainless Steel Drip Pan
- Three Phase Generator Output
- Custom Front PTO Pulleys
- 24 Volt Starting System
- 50 Cycle Output
- Dedicated Motor Starting Generator Windings
- Sound Insulation Blanket
- Sound Attenuated Enclosure
- Powder Coated Aluminum
- Remote Oil Filter Kits
- BALMAR High Output Alternator
- Custom Chrome Packages
- Spare Parts Kit
