Description

The Next Gen 3.5 kW Marine Diesel Generator is the lightest, most compact, and most efficient 2800 RPM gen set in its class. Mid-speed operation provides low sound and vibration levels and a longer lifespan. Fully freshwater marinized heavy-duty Kubota diesel engine provides trouble-free operation. Easy to maintain. 3-year warranty. Remote panel, sound shield, and 10 ft wire harness included.

Part Number: UCM1-3.5E

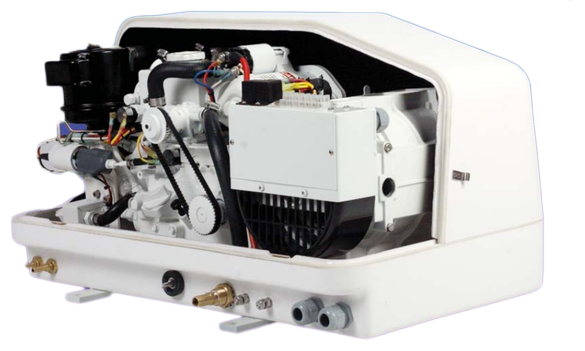

Next Gen 3.5 kW Marine Diesel Generator w/ Sound Shield – UCM1-3.5E

The Next Gen 3.5 kW Marine Diesel Generator is the most compact, low-profile, and quietest 2800 RPM diesel marine generator on the market.

Traditional 2800 RPM generators are often too large and heavy to fit in many small to medium-sized vessels where space is at a premium.

Thanks to its patented design, Next Generation marine generators don’t have to resort to the current trend of high-speed 3,600 rpm operation used on smaller gen sets. Running at 2800 RPM ensures quieter performance, more efficiency, and a longer lifespan than 3600 RPM generators.

The Next Gen 3.5 kW Generator uses a Kubota diesel engine, same as used in Cummins Onan and Phasor marine generators. An added sound shield ensures even quieter operation.

Next-Gen generators are manufactured in Jacksonville, FL, USA.

FEATURES

• Cupro – Nickel Heat Exchanger
• Unit mounted self-priming impeller pump
• Stainless steel water-cooled exhaust mixer
• Air Cleaner/intake silencer
• Oil pressure & water temperature safety shutdown
• Extra wide timing drive system
• 12-volt electric fuel pump
• Extra resilient four-point isolation mounts
• “Easy Drain” oil change system removable/cleanable
oil filter
• Front side service
• Marine grade tinned wire
• Fuel filter
• Main breaker
• Belt guard
• Remote start panel with hour meter and harness

SPECIFICATIONS OF NEXT-GEN 3.5 KW MARINE DIESEL GENERATOR – UCM1-3.5E
