Yanmar 1GM10 Marine Inboard Diesel Engine 9hp
$5,142.00
- Description
Description

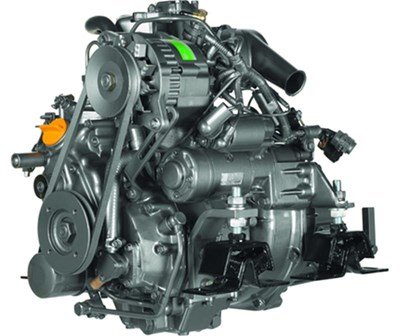

Yanmar 1GM10 Marine Inboard Diesel Engine 9HP
The Yanmar 1GM10 marine inboard diesel engine delivers a maximum 6.6 kW / 9 MHP at 3,600 rpm from a 0.318-litre, single-cylinder design. Naturally aspirated, mechanically managed and directly seawater cooled, it provides compact auxiliary propulsion for smaller sailboats and pleasure craft. yanmar.com
Looking for a Yanmar 1GM10 for sale? Request pricing from MSS Motorsports UG for a replacement engine, shaft-drive package or SD25 saildrive configuration. Specify your vessel and required equipment to obtain a quotation suited to your installation.
Compact Single-Cylinder Marine Diesel Power
Part of the Yanmar GM Series, the 1GM10 combines mechanical indirect injection with a small installation footprint. Its published 71 kg dry engine weight without gearbox provides a useful starting point when assessing machinery weight and available space.
Key features include:
- Mechanical fuel injection: An in-line pump supplies the indirect-injection combustion system.
- Naturally aspirated operation: The engine develops its rated output without turbocharging.
- Direct seawater cooling: A rubber-impeller pump circulates cooling water through the engine.
- Propulsion choices: Manufacturer documentation identifies shaft-drive and SD25 saildrive configurations. yanmar.com
For a small sailboat repower, consider the vessel’s displacement, required motoring performance and propeller demand alongside engine dimensions.
Technical Specifications
| Specification | Manufacturer Reference |
|---|---|
| Engine model | Yanmar 1GM10 |
| Engine configuration | Single-cylinder, four-stroke diesel |
| Maximum crankshaft output | 6.6 kW / 9 MHP at 3,600 rpm |
| Displacement | 0.318 litres |
| Bore × stroke | 75 × 72 mm |
| Fuel injection | Mechanical indirect injection, in-line pump |
| Aspiration | Naturally aspirated |
| Cooling | Direct seawater cooling |
| Electric starter reference | 12V, 1.0 kW |
| Alternator reference | 12V, 40A |
| Controls | Mechanical |
| Dry engine weight | 71 kg, without gearbox |
| Reference dimensions | 554 × 410 × 485 mm, including KM2P-1 marine gear |
MHP means metric horsepower. Reference dimensions depend on the selected gearbox and exhaust arrangement. Obtain the applicable installation drawing before preparing engine beds or ordering associated components. yanmar.com
Review the official Yanmar 1GM10 specifications for manufacturer information.
Direct Seawater Cooling and Installation Planning
The 1GM10 uses direct seawater cooling. Plan the water intake, seacock, strainer, pump access and exhaust-water discharge as part of the installation.
For a repower, check the condition and routing of existing cooling hoses and exhaust components. Retain access for impeller replacement and routine engine servicing, and follow the applicable maintenance schedule.
An engine replacement is also an opportunity to establish which mounts, hoses, controls and exhaust components can be retained and which need replacement.
KM2P-1 Marine Gearbox for Shaft Drive
Yanmar’s current product information identifies the KM2P-1 marine gearbox for a conventional shaft-drive installation. The transmission uses a mechanical cone clutch. yanmar.com
Select the reduction ratio around the propeller, shaft arrangement and vessel requirements. If you plan to reuse an existing gearbox, provide its exact model, ratio, identification plate and coupling details for compatibility assessment.
Confirm engine-bed positions and shaft alignment before finalising the package.
Yanmar 1GM10 with SD25 Saildrive
The Yanmar SD25 is a documented saildrive pairing for the 1GM10. It uses a dog clutch and has a published 2.64:1 reduction ratio in forward and reverse. www.yanmar.com
For a complete saildrive quotation, identify the engine and drive configuration, leg length, mounting arrangement and required propeller. Confirm the scope for controls, diaphragm, seals, anodes and mounting hardware.
Include identification photographs and installation details when requesting a replacement for an existing saildrive.
Instrument Panel and Package Equipment
Yanmar’s current reference engine package lists an A panel, flexible mounts, an L-type exhaust mixing elbow and a 12V, 40A alternator. The B20 instrument panel is listed as an option. yanmar.com
Specify your preferred panel, control head and harness requirements. Confirm the equipment supplied with the quoted engine, especially when comparing an engine-only offer with a propulsion package.
For a higher-output, two-cylinder alternative, compare the Yanmar 2YM15 marine inboard diesel engine.
Output Rating and Vessel Matching
The advertised 9 MHP is maximum crankshaft output. Yanmar’s GM operating manual also lists a continuous reference output of 5.9 kW / 8 MHP at 3,400 rpm under ISO 3046-1 conditions. yanmar.com
Use the applicable rating conditions and operating guidance when matching the engine to your vessel. Actual cruising speed and fuel consumption depend on hull design, loading, propeller selection and installation.
Pricing, Availability and Warranty
Request an itemised quotation confirming engine condition, identification, gearbox or saildrive, controls, included accessories, availability, estimated lead time and delivery charges.
Obtain written details of any applicable manufacturer or supplier warranty, including eligibility, registration requirements, exclusions and the claims process. Agree installation and commissioning responsibilities before purchase.
Frequently Asked Questions
What fuel system does the Yanmar 1GM10 use?
It uses mechanical indirect injection with an in-line fuel pump.
Does the 71 kg engine weight include a gearbox?
No. It is the published dry engine weight without marine gear. Assess the weight of the complete proposed package. yanmar.com
Can I retain my existing gearbox during a repower?
Compatibility depends on its model, reduction ratio, connection arrangement and condition. Provide identification details before selecting the replacement engine.
Request Your Yanmar 1GM10 Quote
Contact MSS Motorsports UG for a Yanmar 1GM10 quotation. Include your vessel model, current engine, gearbox or drive model and ratio, preferred controls, intended use, purchase timing, and billing and delivery addresses.
