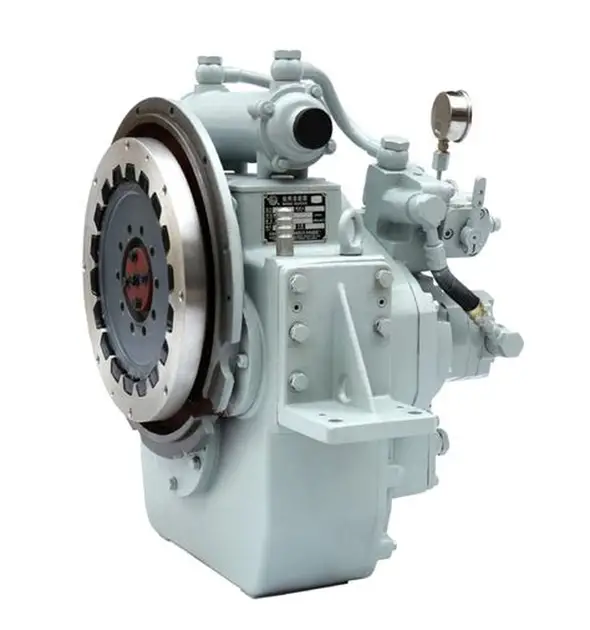

Advance 120C Heavy Duty Marine Hydraulic Gearbox For Commercial Applications and option for Live PTO.
Available in the following ratio options:
1.48:1 (0.136hp/RPM)
1.94:1 (0.136hp/RPM)
2.45:1 (0.136hp/RPM)
2.96:1 (0.122hp/RPM)
3.35:1 (0.109hp/RPM)
Max Input Speed 2500RPM
Adaptor Plate Options:
SAE3
SAE2
SAE1
Control Options:
Mechanical
Electronic
Drive Plate Options:
11.5”
14”
Option for Live PTO
Option for Gearbox Oil Cooler
Weight 225KG
Drop Centre 180mm
Dimensions 352x694x650 mm
